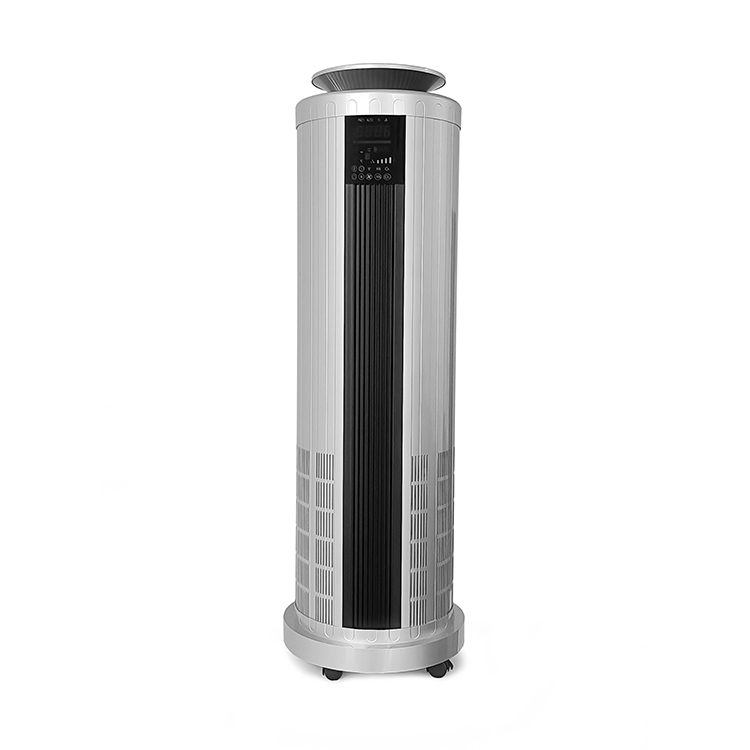

Plasma sterilizer

  • Product details page
  • Product parameters
  • Product Photograph

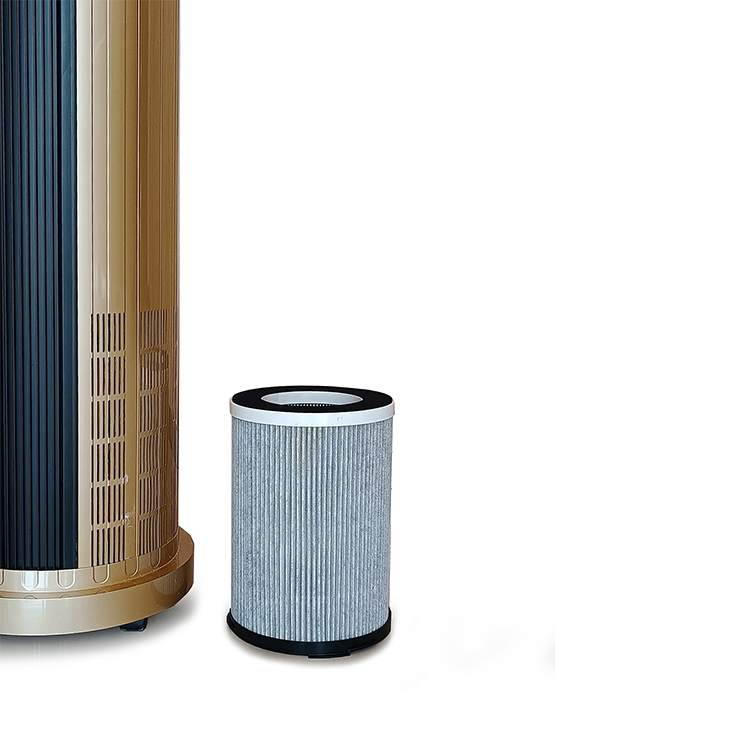

  •         Plasma disinfection machine under the action of high voltage electric field can produce hundreds of millions of charged plasma group. The charged plasma group disperses into the air, encasing harmful gases such as bacteria, viruses, soot and formaldehyde, and has a series of physical and chemical reactions with it; The charged plasma group breaks down the cell membrane of bacteria and viruses and destroys the DNA strand, and achieves sterilization effect. After the reaction is over, stable and harmless molecules such as carbon dioxide and water are formed. Plasma disinfection machine adopts 360° air inlet mode, three layers of evolution, layer on layer check. The filter element is mainly composed of the initial effect filter net +HEPA filter net + activated carbon filter net, which can efficiently filter dust, hair and other large pollutants, PM2.5 and other small particles, adsorption decomposition of formaldehyde, toluene, odor bacteria and other harmful gases. In the process of disinfection and purification, the machine can replenish the room with oxygen at the same time.


  • ModelVoltage/FrequencyFunction of motionWind speed adjustmentPurification powerNoise volumeParticulate matter concentrationFormaldehyde concentrationPM2.5 Purification rateFormaldehyde purification rateParticulate matter purification efficiencyFormaldehyde purification efficiencySizeWeight
    JBHJ-XD-880220V/50Hz净化+消毒四档82<55dB(A)500m³/h300m³/h99.3%97%P4F4D400*H880mm22kg
    JBHJ-XD-1200220V/50Hz净化+消毒四档87<55dB(A)650m³/h350m³/h99.5%97.3%P4F4D400*H1200mm25kg
    JBHJ-XD-1600220V/50Hz净化+消毒四档92<55dB(A)880m³/h400m³/h99.8%98%P4F4D400*H1600mm28kg

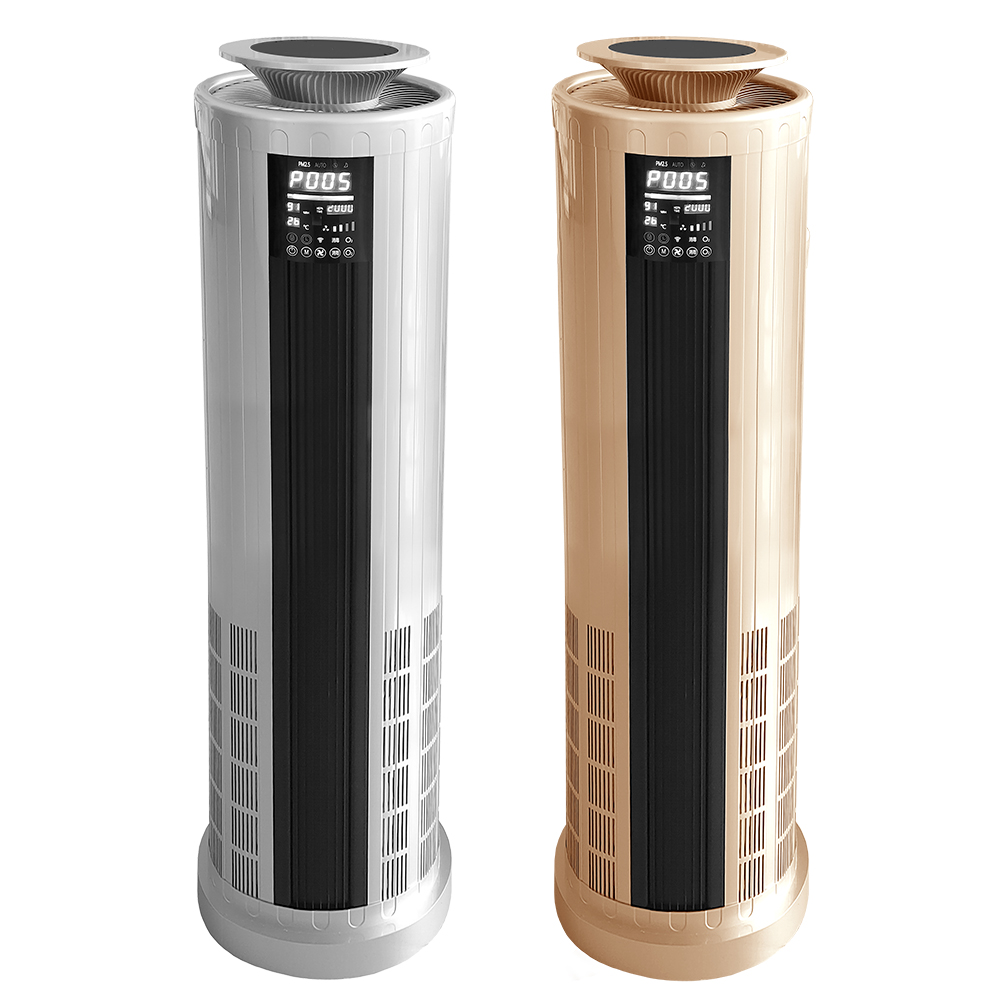

  • 实图1.jpg
