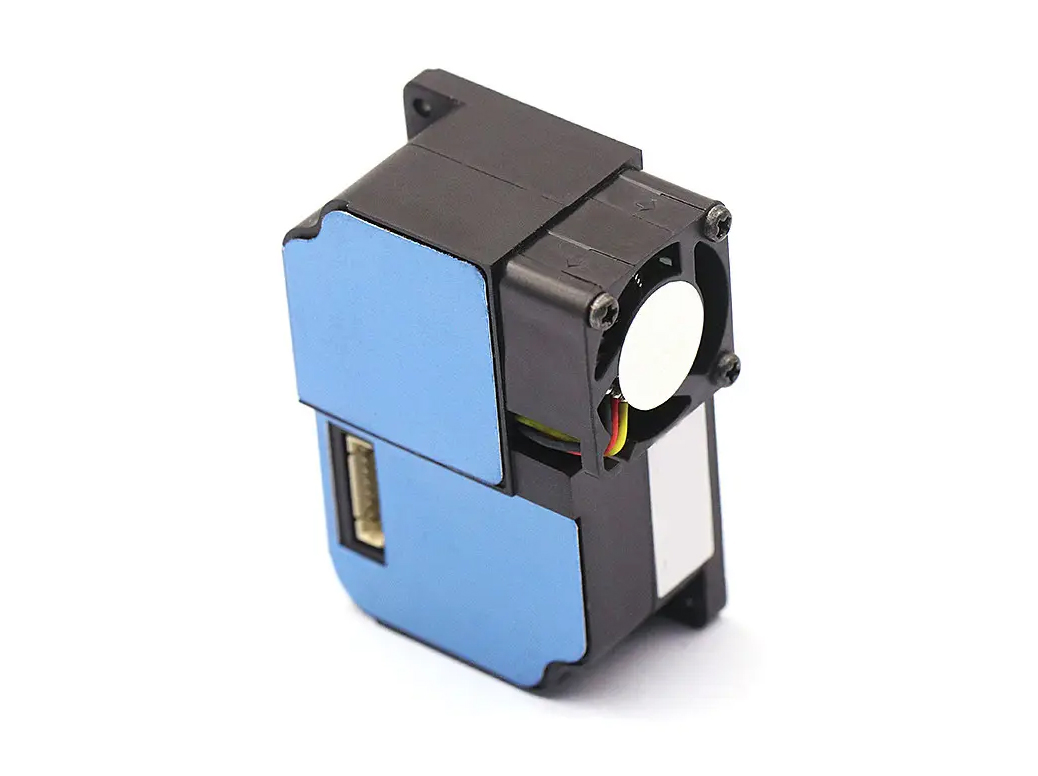

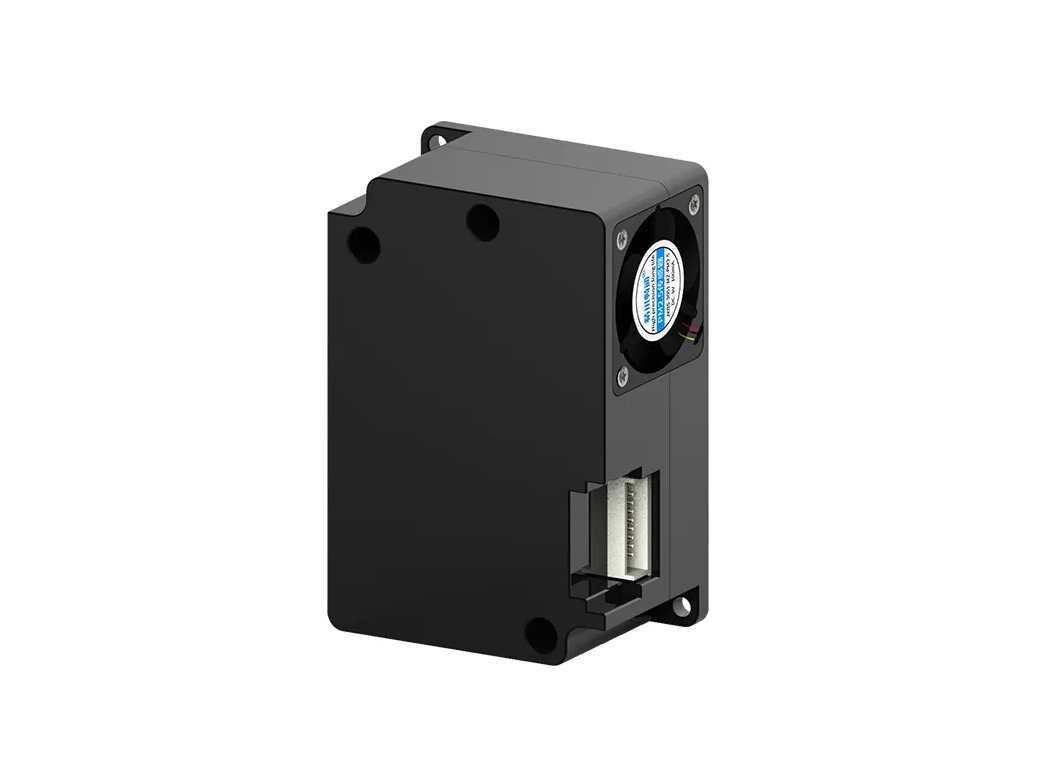

Laser PM2.5 dust particle sensor

The laser PM2.5 dust particle sensor is a kind of particulate matter monitoring sensor, which is often used to detect the concentration of dust particles (such as PM2.5, PM10, etc.) in the environment. Compared with other technical principles (such as infrared), the particle sensor using laser principle has higher detection accuracy, longer, higher consistency, better environmental adaptability, strong anti-interference performance, high sensitivity and long life. It can be widely used in home, industrial, automotive and so on.

Menu: About Jabe Product center Environmental steward Solution and project case Project case

News center Join us Contact us

Scan the official accounts

Contact us

National free service hotline

13236913298
0411-87566110

Contact us

Model	The maximum range of particulate concentration	effective range of particulate concentration	Consistency of particulate concentration	accuracy of particulate concentration	Power supply voltage	Weight	Size
JBHJ-FC-5303	＞1000ug/m³	0-600ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	DC 5±0.5V	24g	48mm37mm12mm
JBHJ-FC-5305	＞1000ug/m³	0-600ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	DC 5±0.5V	24g	48mm37mm12mm
JBHJ-FC-5306	＞1000ug/m³	0-600ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	DC 5±0.5V	24g	48mm37mm12mm
JBHJ-FC-5308	＞1000ug/m³	0-1000ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	DC 5±0.5V 纹波＜50mv	26g	48mm37mm12mm
JBHJ-FC-5312	＞1000ug/m³	0-1000ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	≥100ug/m³：±10%；＜100ug/m³：±10ug/m³	DC 5±0.5V 纹波＜50mv	24g	59mm45mm14mm
